Everest Mentor Flex endoskop video RVI NDT kontrola

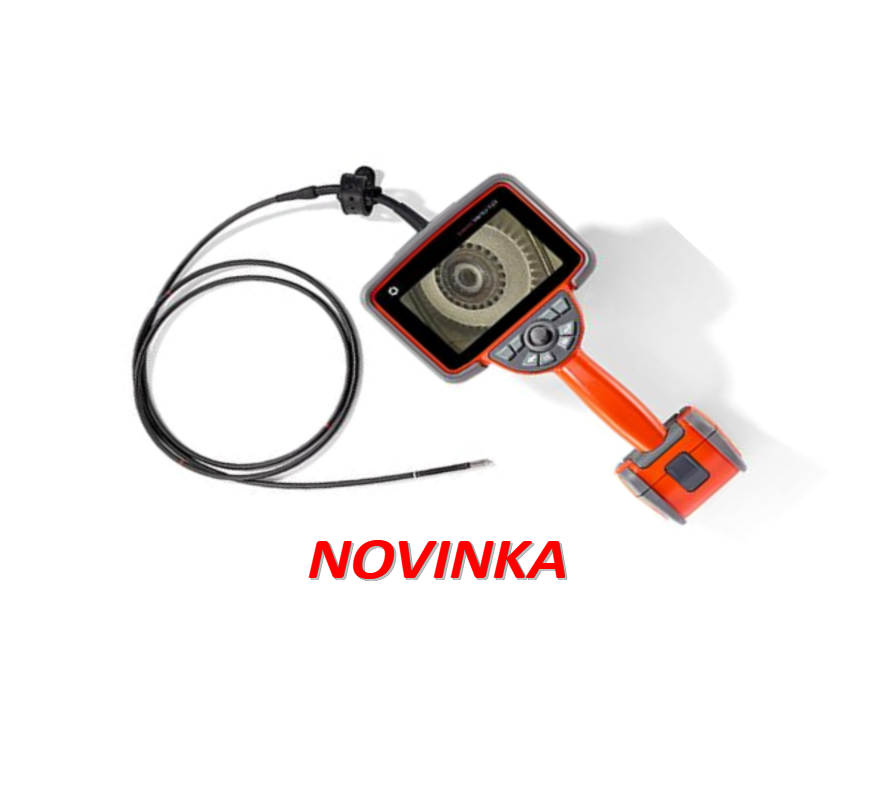

Everest Mentor Flex VideoProbe™

Zvyšujúce sa nároky na odolnosť, kvalitu obrazu a priemyselný dizajn nedokáže splniť každé zariadenie. Everest Mentor Flex so svojím vojenským stupňom odolnosti spĺňa požiadavky pre odolnosť do náročného prostredia pre náročného používateľa. Kombinácia odolného dizajnu, ergonómie a kompaktnosti v spojení s kvalitnou optikou poskytuje bezprecedentný pomer hodnoty.






Základné vlastnosti zariadenia:

  • Široký XGA dotyjkový displej s vynikajúcimi pozorovacími uhlami
  • Intuitívne užívateľské rozhranie a systém navádzania kontroly (MDI)
  • Vylepšený mechanický dizajn poskytuje lepší rozsah artikulácie
  • Bezdrôtový prenos obrazu a údajov cez iOS zariadenia so SW InspectionWorks
  • Stereo a porovnávacie merania
  • Aktualizácia SW cez WiFi



Everest Mentor Flex Videonedoskop RVI nedeštruktívna kontrola materiálov
Viditeľná kvalita a vysoká PoD


Zariadenie ponúka vo svojej triede bezkonkurenčnú kvalitu obrazu TrueSight™ na veľkej 5.8” WXGA (Wide XGA) LCD obrazovke s ochranným sklom Gorilla® Glass. V priemyselnej oblasti poksytje endoskop jedene z najlepších zdrojov svetla, vďaka čomu sú
obrázky a videá jasnejšie a prispievajú k presnejšej a lepšej detekcii indikácií a ich presnému zhodnoteniu s väčšou istotou.















Videoendoskop Everest Mentor Flex RVI

Point to What You Need


The Everest Mentor Flex’s virtual keyboard enables 300% faster annotation, and its multi-point touchscreen provides pinch-to-zoom as well as swipe and pan gesture functionality. Menu Directed Inspection (MDI) empowers inspectors with auto-image smart tagging and automatic report generation, plus customizable user profiles and an embedded help menu. Last, but certainly not least, InspectionWorks Connect takes inspections to the future with wireless video streaming and file transfer to iOS devices over dual-band Wi-Fi.

Video endoskop Everest Mentor Flex RVI NDTPowerful and Responsive


In any industry, time is money. With an upgraded articulation design founded on high-power steering motors, the Everest Mentor Flex allows technicians to effortlessly navigate even the most challenging inspection paths, resulting in less time spent searching and more time spent capturing and analyzing indications —  at a fraction of the time and cost. Two and a half times more torque than today’s motors provides an increase of 42% in articulation range.  And 16% less friction gives an ultra-responsive feel while extending articulation over the life of the product.

Videoendoskop Everest Mentor Flex RVI NDTDetect the Undetectable


All cameras apply Gamma Correction, but Dark Boost assesses the content of scenes and intelligently adjusts levels to digitally brighten darker areas — for instance, those with bright foreground surfaces or glare — without overexposing or degrading the contrast of more uniform scenes. Similarly, wide fields of view with some tip optics can cause an image to appear to be curved at the edges or have a “fish eye” appearance. This distortion can be so great that the edges of turbine blades or other objects being inspected may appear bent. With Distortion Correction, the Mentor Everest Flex automatically corrects this and flattens the edges of the image, thereby enabling wide field-of-view optics without the inaccuracies. Together with Color Saturation, these features provide high-quality images that show not only textures but flaws and defects that were previously undetectable. When you can see clearly, you increase the probability of detection, speed up inspection workflow, and deliver results with confidence.

Videoendoskop Everest Mentor Flex RVI NDTRedefine Ruggedness


Constructed with military-grade magnesium housing (MIL-STD) and tested by a third party to withstand the rigors of the industrial workplace, you can trust your Everest Mentor Flex borescope to deliver top performance in even the harshest environmental conditions.

Standard compliance and classifications:

MIL-STD-810H United States Department of Defense Environment Tests Sections 501.7, 502.7, 506.6, 507.6, 509.7, 510.7, 511.7, 514.8, 516.8, 521.4
MIL-STD-461G United States Department of Defense - Electromagnetic Compatibility with RE102 and RS103 - ABOVE DECK
Protected against:
Drops, 4 ft. (1.2m) on steel surface
Blowing and freezing rain
Vibration
High humidity
Dust and salt fog
Standards compliance Group 1 Class A; EN61326-1, IEC CB Scheme, UL/EN/CASE-C22.2 61010-1, IEC 62133, UN/DOT T1-T8, EU RoHS 2, EU RED Directive, ISTA 2G
IP rating: IP65 (assembled), IP55 (disassembled)



Máte otázky, alebo chcete vypracovať ponuku?

Kontaktujte nás: topndt@topndt.sk

SW Updates na stiahnutie TU!





Waygate Technologies a Baker Hughes Business - previously GE Inspection Technologies
